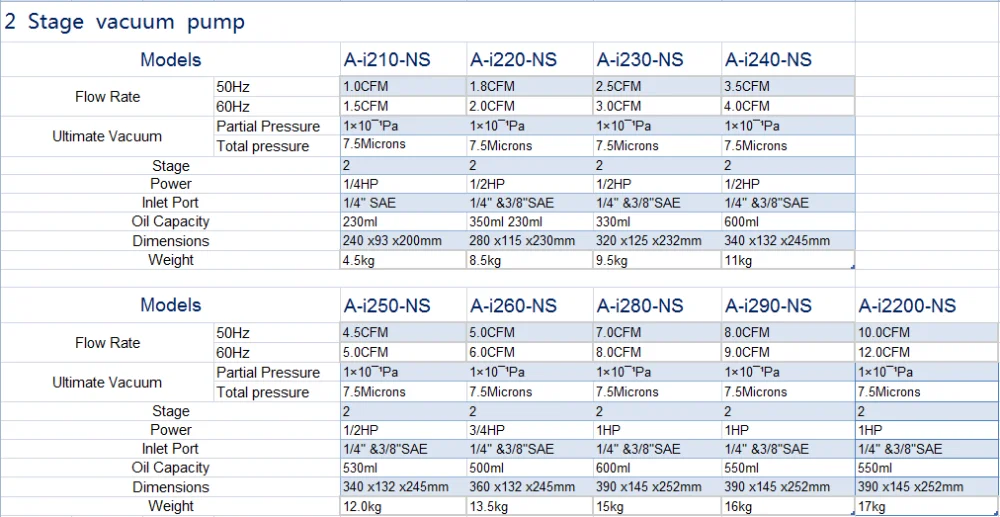

2 stage vacuum pump | ||

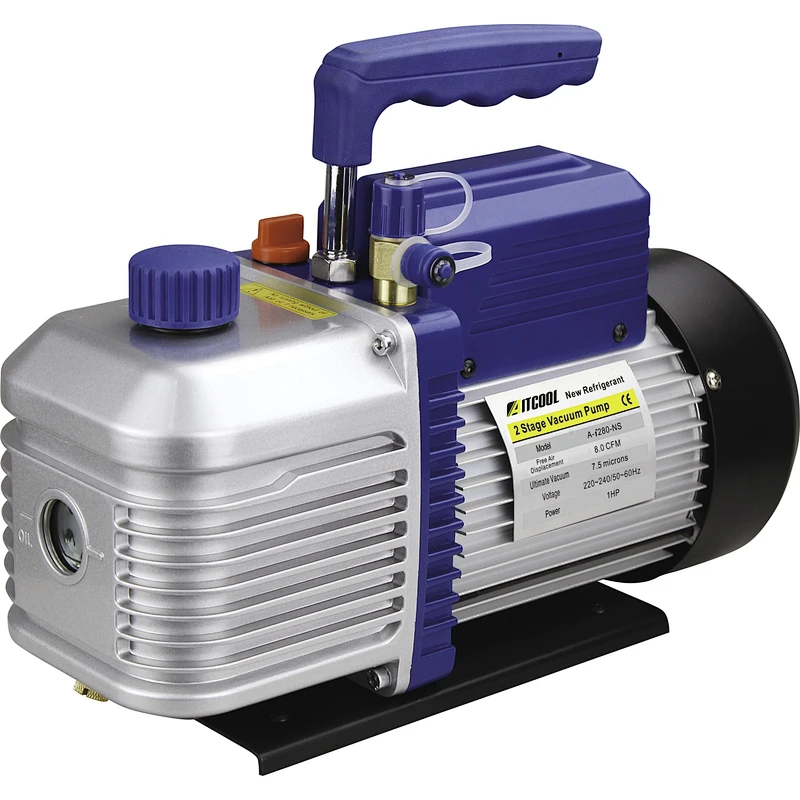

Model | A-i290-NS | |
Flow rate | 50Hz | 8.0CFM |
60Hz | 9.0CFM | |
Ultimate vacuum | Partial pressure | 0.1Pa |
Total pressure | 7.5 | |
Stage | 2 | |
Power | 1HP | |
Inlet port | 1/4"&3/8"SAE | |
Oil capacity | 550ml | |
Dimensions | 390*145*252mm | |
Weight | 16kg | |
Main Features
1. Designed specially for HVAC/R service
2. Ultimate deep vacuum: single stage is 5PA, while dual voltage is 0.3 Pa
3. Compact design with aluminum hosing and easy to carry.
4. Thermal protector in the motor to guarantee the pump to run steadily.
5. Both 1/4' and 3/8' SAE flare inlet connections allow for flexibility of connections.
6. Vacuum pump oil included.
7. Suitable for all the main voltage design in the market.
8. Individual design for special customers.
Machine Parts
Name:Handle
Brand:AITCOOL
Original:China
Ergonomic and portable design
for easier handing
Main Features

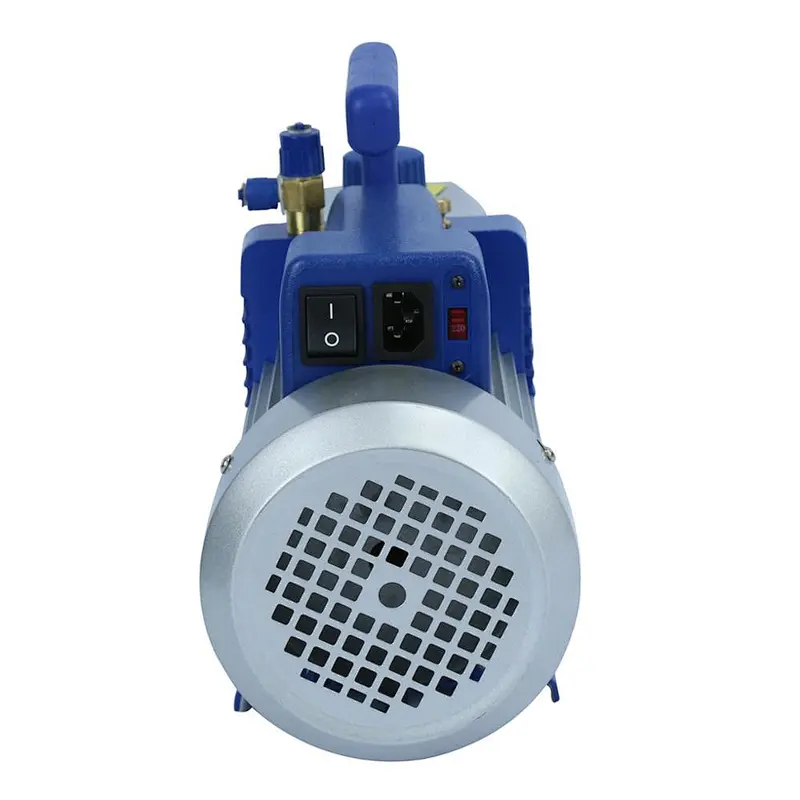

Name: Fan-cooled Motor
Brand:AITCOOL
Original:China
Cooling fan for maximum performance
in even harshest conditions
Machine Parts
Name:Housing
Brand:AITCOOL
Original:China
Die-cast aluminum housing makes
the pump lightweight but durable
Main Features
Name: Oil Drain Valve
Brand:AITCOOL
Original:China
Positioned at bottom of the oil
Reservoir for faster and more
complete draining
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Just kind remind, the express charge is higher than samples. So pls consider before you order.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit ?
A: MOQ $5000.00 each order, if order less than $5000.00. we request $250.00 for extra charge.
Q4. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Is it OK to use my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1years warranty to our products.
