Product Description

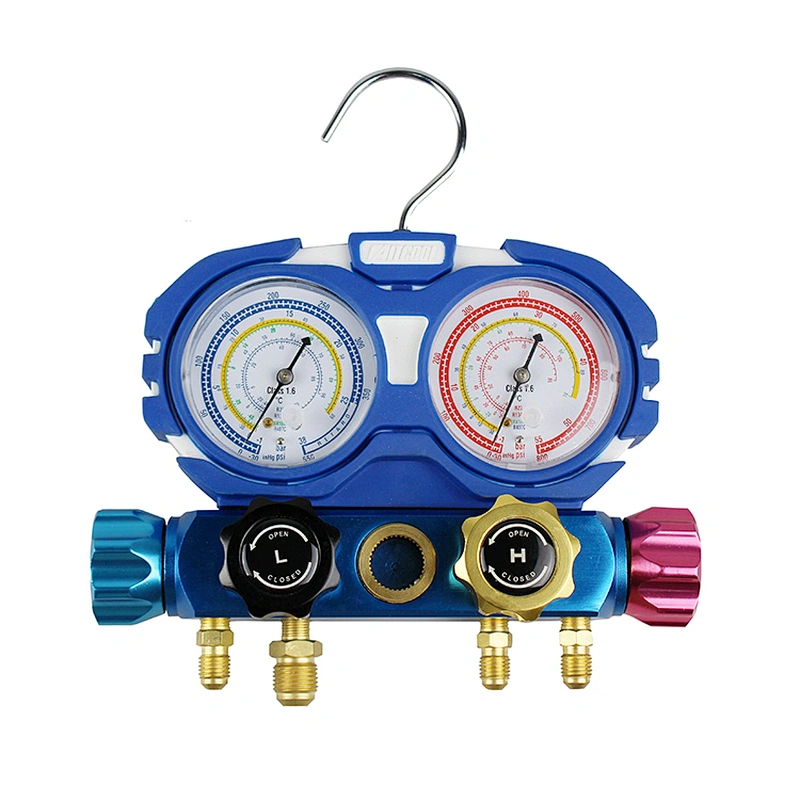

| Model | HMG-4-R410A-II | HMG-4-R134A-II | HMG-4-R32-II | HMG-4-1234yf |
| Refrigerants scale | R410A,R22,R407C,R134a | R134a,R22,R404a,R407c | R410A,R32 | R134a,HFO-1234yf |
| Gauge Diameter | 68mm | 68mm | 68mm | 68mm |
| Pressure Scale | 0~800psi;-30~0psi; 0~550psi | 0~400psi;-30~0psi; 0~350psi | 0~800psi;-30~0psi; 0~550psi | 0~400psi;-30~0psi; 0~350psi |
| Connector | 3x1/4''SAE,1x3/8''SAE | 3x1/4''SAE,1x3/8''SAE | 3x1/4''SAE,1x3/8''SAE | 3x1/4''SAE,1x3/8''SAE |
| Hose | Red-Yellow-Blue:1/4"SAE-Fx1/4"SAE-F Red&Bule:1/4"SAE-Fx5/16''SAE-F Yellow:1/4"SAE-Fx1/4"SAE-F | Red-Yellow-Blue:1/4"SAE-Fx1/4"SAE-F Red&Bule:1/4"SAE-Fx5/16''SAE-F Yellow:1/4"SAE-Fx1/4"SAE-F | Red-Yellow-Blue:1/4"SAE-Fx1/4"SAE-F Red&Bule:1/4"SAE-Fx5/16''SAE-F Yellow:1/4"SAE-Fx1/4"SAE-F | Red-Yellow-Blue:1/4"SAE-Fx1/4"SAE-F Red&Bule:1/4"SAE-Fx5/16''SAE-F Yellow:1/4"SAE-Fx1/4"SAE-F |
| Standard Length | 90cm | 90cm | 90cm | 90cm |

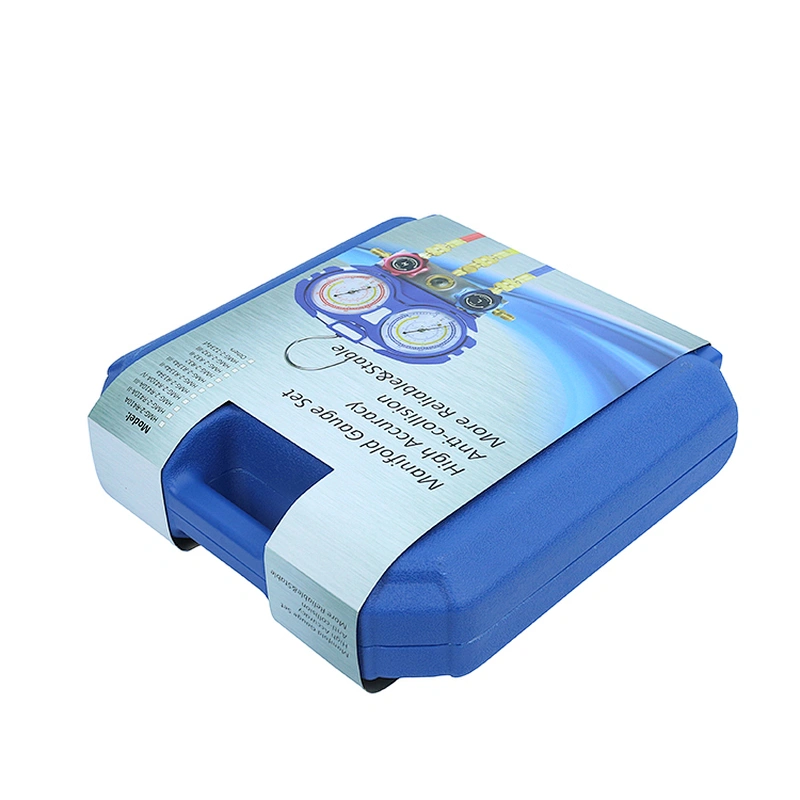

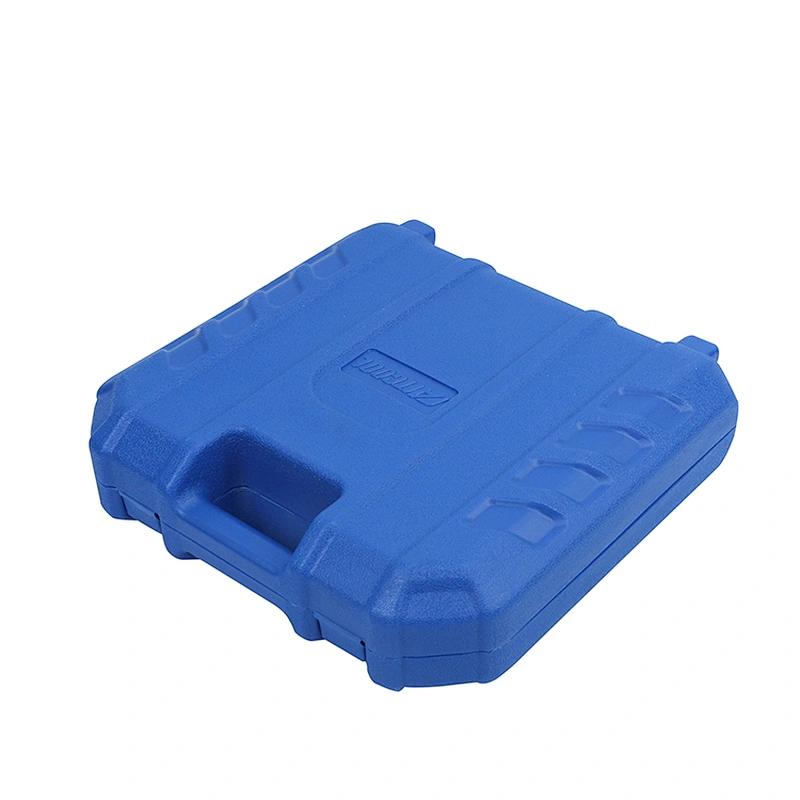

| Package | Blow case/Blister packing/Box packing | Blow case/Blister packing/Box packing | Blow case/Blister packing/Box packing | Blow case/Blister packing/Box packing |
Notice:All the above information is standard size,we also could manufacturer according to your requirment.
