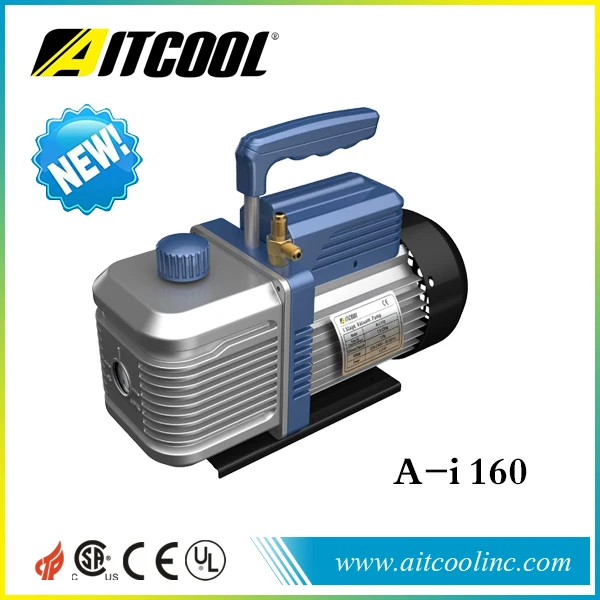

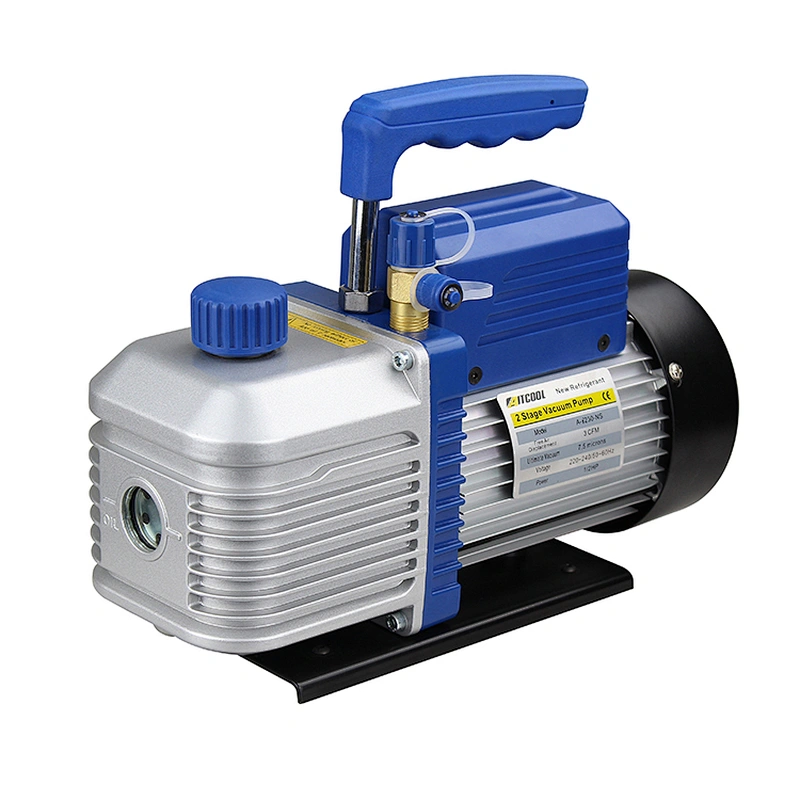

Integral structure low speed motor single stage rotary vane mini vacuum pump A-i160
| Models | A-i160 | |
| Flow Rate | 50Hz | 5.0CFM |
| 60Hz | 6.0CFM | |
| Ultimate Vacuum | Partial Pressure | 1Pa |
| Total pressure | 75Microns | |
| Stage | 1 | |
| Power | 1/2HP | |
| Inlet Port | 1/4"&3/8"SAE | |
| Oil Capacity | 500ml | |
| Dimensions | 340 x132 x245mm | |
| Weight | 5.0kg | |
1. Designed specially for HVAC/R service.
2. Ultimate deep vacuum: single stage is 5PA, while dual voltage is 0.3 Pa.
3. Compact design with aluminum hosing and easy to carry.
4. Thermal protector in the motor to guarantee the pump to run steadily.
5. Both 1/4' and 3/8' SAE flare inlet connections allow for flexibility of connections.
6. Vacuum pump oil included.
7. Suitable for all the main voltage design in the market.
8. Individual design for special customers.
