Technical data:

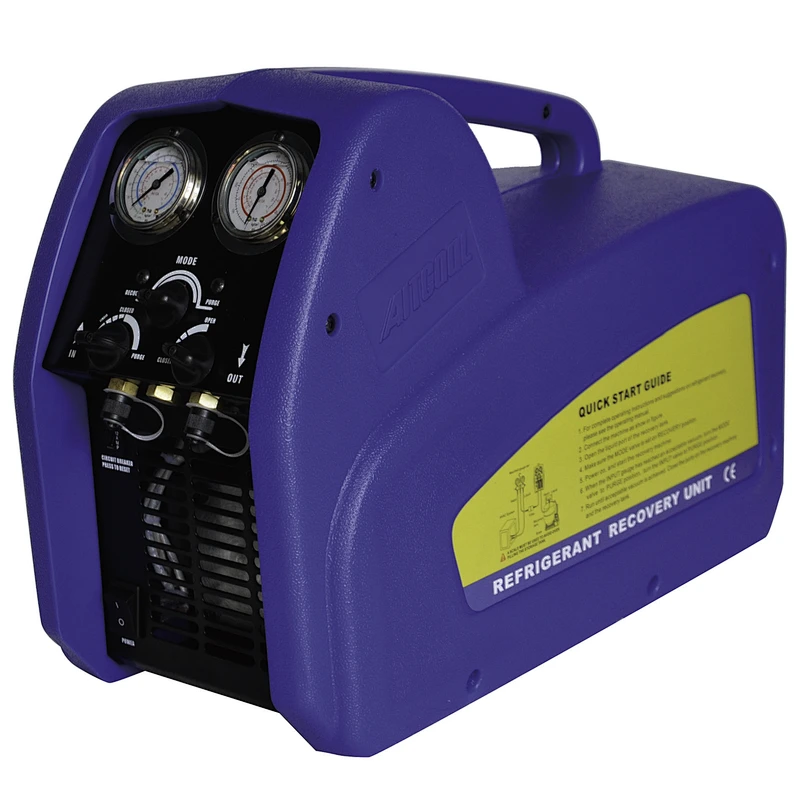

| Model | RECO520 | ||
| Refrigerants | Cat.Ⅲ:R-12,R-134a,R-401C,R-406A,R-500 | ||
| Cat.IV:R-22,R-401A,R-401B,R-402B,R-407C, R-407D,R-408A,R-409A,R-411A,R-411B,R-412A,R-502,R-509 | |||
| Cat.V:R-402A,R-404A,R-407A,R-407B,R-410A, R-507 | |||
| Power |
| ||
| Motor | 1HP AC;Capacitor start | ||
| Max.Current | 6A@50Hz 12A@60Hz | ||
| Compressor | Twin-piston style | ||
| Refrigerant Recovery Rate |
| ||
| Vapor | 0.46kg/min 0.50kg/min 0.52kg/min | ||
| Liquid | 3.14kg/min 3.62kg/min 3.70kg/min | ||
| Push/Pull | 9.28kg/min 11.14kg/min 12.44kg/min | ||
| High Pressure Shut-off | 38bar/550psi | ||
| Low Pressure Shut-off | Optional | ||
| 80%O.F.P.Shut-off kit | Optional | ||
| Operating Temp. | 0 °C-40°C | ||
| Dimensions | 485mm(L)x220mm(W)x365mm(H) | ||
| Net Weight | 15kg | ||
Features:
1. Recover all commonly used refrigerants (CFC,HFC, HCFC), including R410A.
2. 1/2HP&1HP, oil-less compressor recovers both vapor and liquid refrigerant quickly.
3. Heavy duty industrial grade condenser and cooling fan.
4. High pressure safety of Shut-off switch.
5. Filter/ Drier removes both moisture and acid from the refrigerant.
6. Ergonomic and compact design makes it easy to carry and use.
7. Design for residential, commercial and automotive A/C system.
8. Optional 80% capacity shut off kit to prevent from overfilling the storage tank.
9. Suitable for all the main voltage standard in the world.
10. China patent, Dual voltage refrigerant recovery, RECO-D SERIES.
11. Oil separator device for recycling refrigerant, RECO-S SERIES.
Company information:
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Just kind remind, the express charge is higher than samples. So pls consider before you order.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit ?
A: MOQ $5000.00 each order, if order less than $5000.00. we request $250.00 for extra
Charge.
Q4. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Is it OK to use my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1years warranty to our products.
